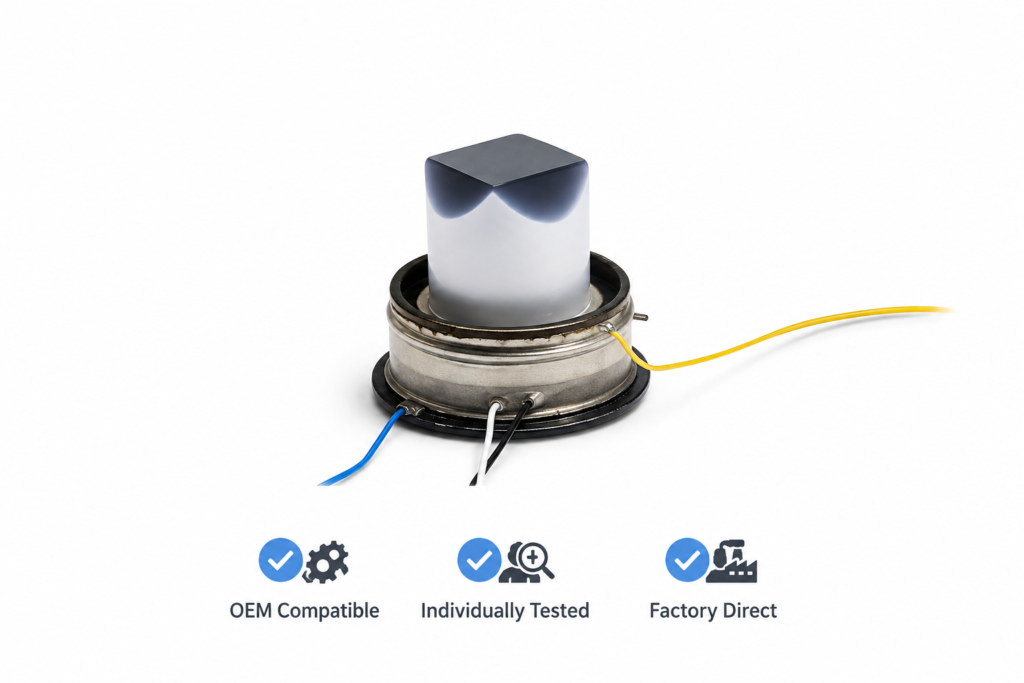

JIMNVT-KZ-20 High-speed Image Intensifier Tube
JIMNVT-KZ-20 is a fast-response low-light image intensifier designed for capturing transient weak light signals with high-speed photocathode switching and gated operation technology.
It provides precise optical signal detection solutions for applications requiring rapid response, flexible configuration and customized integration.
- Fast Response Performance
- Gated Operation Capability
- Wide Spectral Response
- Flexible Customization
Technical Specifications
Model
JIMNVT-KZ-20
Photocathode Effective Diameter
≥17.5mm
Cathode Materials
S25 / S20 / Bialkali
Input Window
Glass / Fused Silica / Fiber Optic Plate (FOP), customizable
Output Window
Glass / Planar Anode / Single Anode / Multi-Anode / Position-Sensitive Anode (PSA), customizable
Phosphor
P43 / P45 / P46
Spectral Response
200 nm–900 nm, customizable
Response Speed
18-31
Luminance Gain
≤3 ns, customizable
Operating Voltage
Cathode voltage 0–200 V; MCP voltage 0–1000 V; Anode voltage 0–6000 V
Key Features
Designed for stable performance, flexible configuration and OEM integration.
Fast Response Performance
Designed for capturing transient weak light signals with rapid response capability.
Gated Operation Capability
Supports high-speed photocathode switching for precise exposure control and signal detection.
Wide Spectral Response
Supports customizable spectral response ranges from ultraviolet to near infrared applications.
Multi-Stage MCP Options
Configurable MCP structures with 1, 2 or 3 stage options for different detection requirements.
Flexible Optical Configuration
Customizable input and output window configurations for specialized optical systems.
Customized Integration
Provides flexible solutions for OEM integration and advanced optical detection systems.
Customization Options
JIMNVT provides flexible customization solutions for fast-response image intensifier applications.
We support customized configurations including photocathode materials, spectral response, MCP structures, and optical window designs according to different detection requirements.
- Photocathode Material Selection
- Spectral Response Customization
- Optical Window Configuration
- MCP Structure Selection
Download JIMNVT-KZ-20 Datasheet
Get detailed technical specifications, response characteristics and customization options for JIMNVT-K-20 fast-response low-light image intensifier.
PDF format | Technical specifications | Product configuration
Application Areas
JIMNVT-KZ-20 fast-response image intensifiers are designed for high-speed optical detection, transient signal observation and customized scientific imaging applications.
Laser Pulse Diagnostics
Designed for capturing and analyzing ultra-fast optical signals generated during laser pulse events.
High-Speed Optical Measurement
Suitable for applications requiring precise detection of transient weak light signals.
Spectral Analysis Systems
Supports customized spectral response configurations for advanced optical analysis systems.
Scientific Imaging Applications
Provides sensitive imaging solutions for research and specialized low-light detection environments.
Request JIMNVT-KZ-20 Technical Information
Interested in JIMNVT-KZ-20 fast-response image intensifier?
Contact our engineering team for technical specifications, customized configurations and OEM integration solutions.
